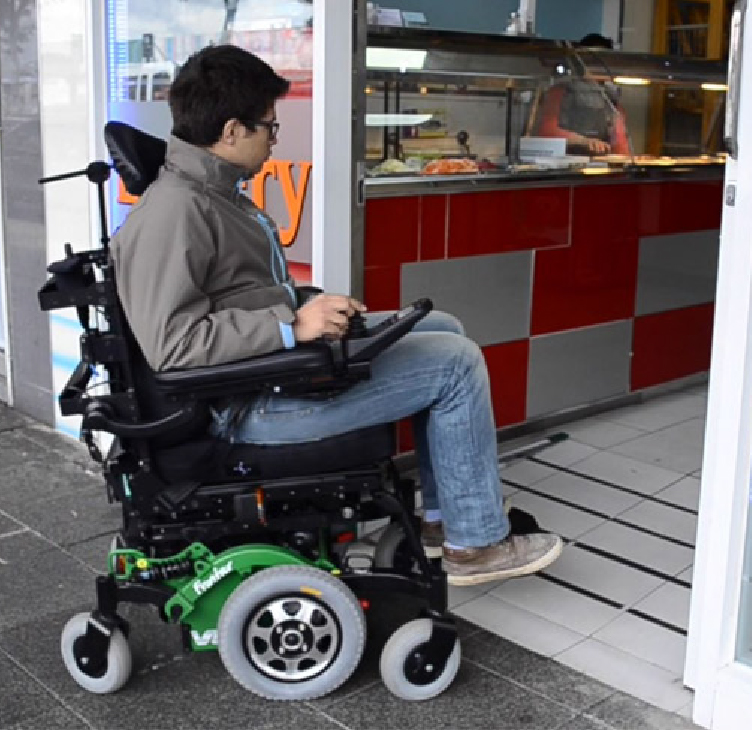

Magic Mobility Frontier V6 – Compact 40 MWD Power Wheelchair

The Magic Mobility Frontier V6 Compact 40 mid-wheel drive electric wheelchair is a fabulous indoor/outdoor option. Smaller 40 amp-hour batteries help further reduce the length of the chair, making it an even more compact and manoeuvrable wheelchair than its larger counterpart, the Frontier V6 Compact 73.

Colours Available
  • Product Brochure
  • Download
  • PDF [615 kb]

Product Highlights

182kg

User Weight Capacity

30.5 - 61 cm
(12" - 24")

Seating Width Sizes

49cm

Turning Radius

  • Very narrow and compact
  • Well suited for the indoors but still more than capable outdoors
  • Smaller batteries reduce weight but still offer great battery life/distance

*Length of base: 910mm (*legrest choice and seating size may increase chair length/width)
*Width of base: 655mm
Floor to top of seat pan height: 435mm
Turning circle (radius) of base: 490mm
Weight limit: 182kg (400lbs), 155kg (340lbs) with lift and/or tilt
Top speed: 10kph (6.2mph)
Motors: 68Nm Torque, 800W, Gear In Line
Motor IP rating 54 (splash resistant but not waterproof): Please note that this wheelchair has electric motors and must not be driven through water, into rivers, creeks and the sea
Wheels: Hybrid 14″x3″ grey or black (solid or pneumatic)
Castors: 200x50mm grey or black (solid or pneumatic)
Batteries: Gel
Controller: Penny & Giles controller with LCD display (R-Net) or LED option
Legrest options: Centre post, manual elevating, power/manual elevating swingaway, centre mount power elevating
Backrest and seat: Adjustable seat pan (12” deep to 24” wide) to fit MPS / Rehab or aftermarket seating options
Tie down points: Crash test compliant
