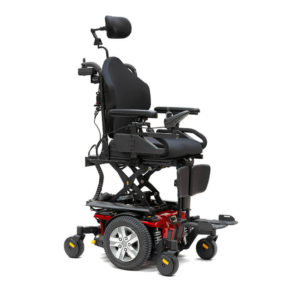

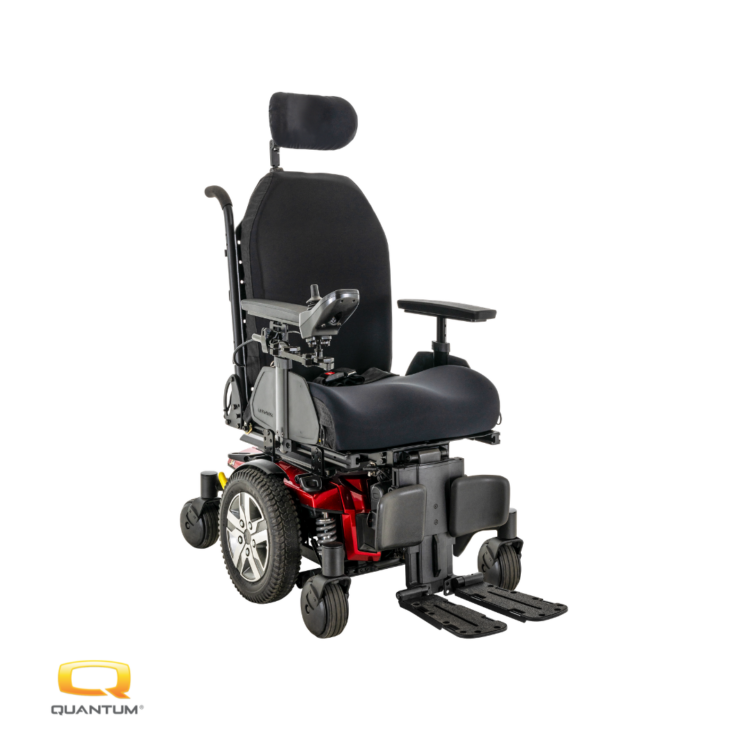

Quantum Jazzy 623 2.0 Power Wheelchair

With features including powerful motors that achieve speeds up to 10km/h and improved responsiveness, the Jazzy 623 2.0 is engineered to meet the performance needs of the most active user. It comes standard with TRU-Balance 50° tilt and optional 25.4cm (10”) of lift elevation, while a VR2 controller offers two seating functions (as standard) and delivers smooth, nimble manoeuvrability matched with exceptional outdoor performance.

Colours Available
  • Product Brochure
  • Download
  • PDF [386 kb]

Product Highlights

136kg

User Weight Capacity

30.5cm – 56cm (12”-22”)

Seating Width Sizes

52cm (20.5")

Turning Radius

  • Quick Height Adjustable (QHA) armrests

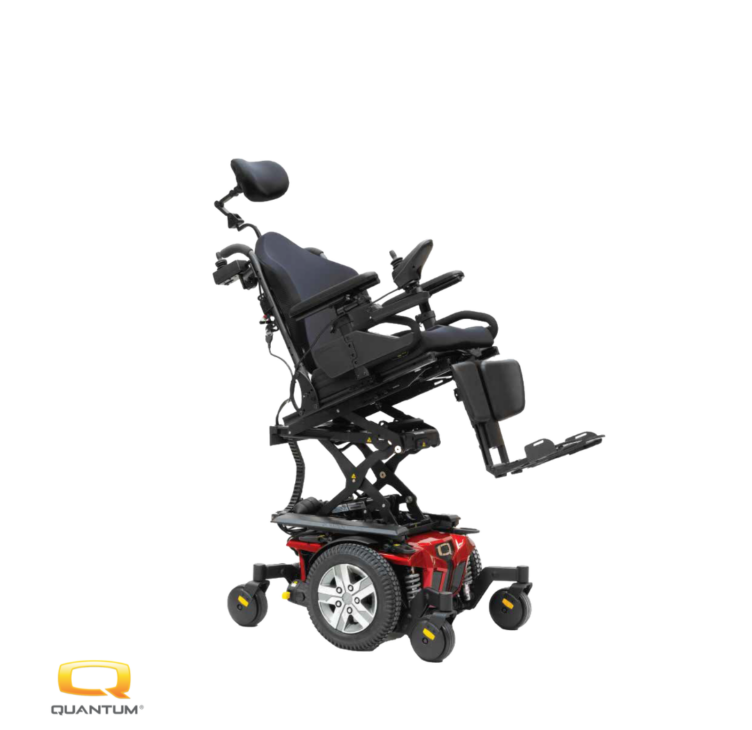

  • TB3 Tilt – TRU-Balance 50 degree tilt
  • Swingaway leg rests with angle adjustable foot plates or centre-mount footboard
  • Choice of either TRU-Comfort back or upgrade to ADI backs
  • Choice of cushion
  • Stealth headrest
  • Available in red or blue as standard. Other colour options available on request.

  • Drive Wheels: 35.56cm solid (pneumatic optional)
  • Front Caster Wheels: 15.24cm solid
  • Rear Caster Wheels: 15.24cm solid
  • Maximum Speed: Up to 9.6km/h
  • Ground Clearance: 6.9cm at battery tray
  • Overall Length: 90.2cm (without foot riggings)
  • Base Width: 62.2cm
