Magic Mobility Frontier V6 – Compact 73 MWD Power Wheelchair

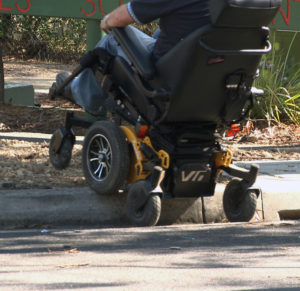

The Magic Mobility Frontier V6 Compact 73 mid-wheel drive electric wheelchair is the perfect indoor/outdoor wheelchair. It is ideal for those who want to cover some distance as the 73 amp-hour batteries give great range in a compact wheelchair body. The shorter front castor arms and smaller castors mean that the wheelchair is smaller in length and width than the All-Terrain and Hybrid. This wheelchair will still climb a moderate kerb without effort, giving you improved freedom in and around the streets.

Colours Available
  • Product Brochure
  • Download
  • PDF [665 kb]

Product Highlights

182kg

User Weight Capacity

30.5 - 61cm
(12" - 24")

Seating Width Sizes

53cm

Turning Radius

  • Manoeuvrable, narrow and compact
  • Optional large batteries give exceptional battery life and travel distance
  • Perfect blend of indoor and outdoor performance

*Length of base: 965mm (*legrest choice and seating size may increase chair length/width)
*Width of base: 655mm
Floor to top of seat pan height: 435mm
Turning circle (radius) of base: 530mm
Weight limit: 182kg (400lbs), 155kg (340lbs) with lift and/or tilt
Top speed: 10kph (6.2mph)
Motors: 68Nm Torque, 800W, Gear In Line
Motor IP rating 54 (splash resistant but not waterproof): Please note that this wheelchair has electric motors and must not be driven through water, into rivers, creeks and the sea
Wheels: Hybrid 14″x3″ grey or black (solid or pneumatic)
Castors: 200x50mm grey or black (solid or pneumatic)
Batteries: Gel
Controller: Penny & Giles controller with LCD display (R-Net)
Legrest options: Centre post, manual elevating, power/manual elevating swingaway, centre mount power elevating
Backrest and seat: Adjustable seat pan (12” deep to 24” wide) to fit MPS / Rehab or aftermarket seating options
Tie down points: Crash test compliant
