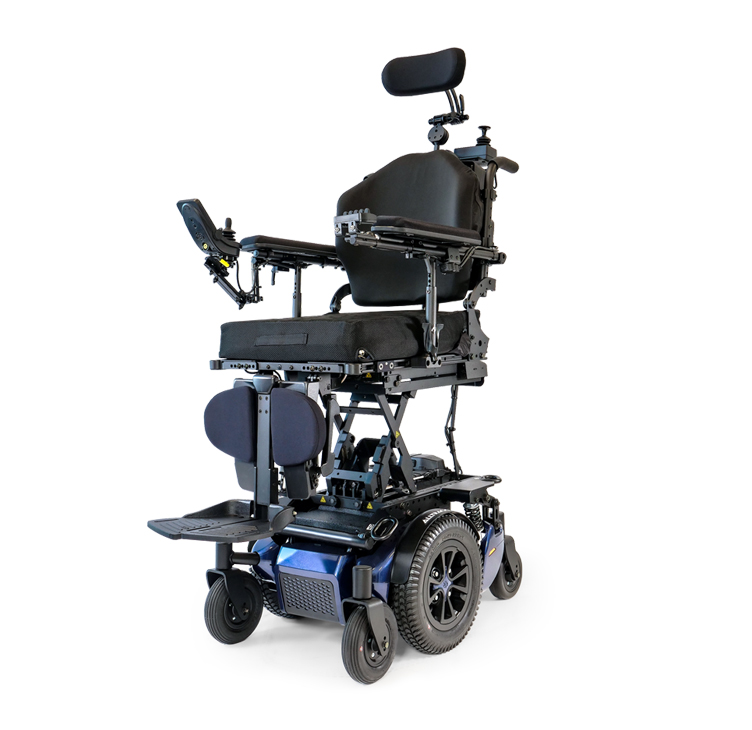

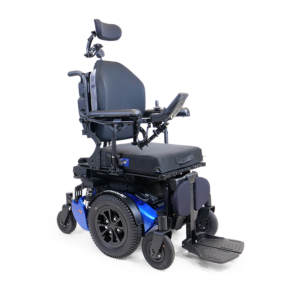

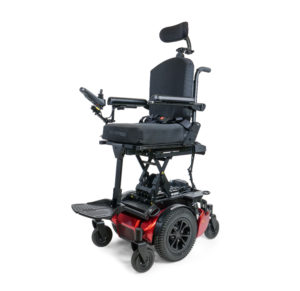

Amylior Alltrack M3 Power Wheelchair

The Alltrack M3 Power Wheelchair provides the perfect blend of indoor manoeuvrability and outdoor performance, ideal for active lifestyles. Thanks to the patented dual-action suspension, the Amylior Alltrack M3 Power Wheelchair enables users to easily navigate everyday obstacles both indoors and out. Each Alltrack M3 Power Wheelchair is fully modular and can be equipped with a wide array of positioning and electronic accessories, providing exceptional performance and endless possibilities.

Colours Available
  • Transportation Safety Guidance Document
  • Download
  • PDF [5 mb]

Product Highlights

136kg

User Weight Capacity

381mm to 660mm

Seat Width

890mm

Overall Length

  • Patented Dual-Action Suspension: Fully independent 6-wheel interactive suspension with vertical shock absorption
  • Compact turning radius
  • Completely modular
  • Full selection of power positioning options
  • Seat to floor height as low as 15.5” (395 mm)
  • Proven, 4-pole German motors
  • Multiple frame, drive wheel and
  • caster options
  • Available in standard (136 kg weight capacity) and HD (204 kg weight capacity) models

Ground clearance: 75mm to 90mm
Base length: 890mm
Base width: 595mm to 645mm
Base turning radius: 510mm
Overall length: 890mm
Overall width: 595mm to 645mm
Seat width: 381mm to 660mm
Battery type: Two 12V, deep cycle Gell cell Group 22NF (50 Ah) or Group 24 (70 Ah)
Seat to floor height range (With power tilt or seat elevate): 395mm to 475mm
Seat to floor height range (With combo power tilt and seat elevate): 445mm to 465mm
Drive wheel diameter:
320mm to 355mm
Caster wheel diameter: 150mm to 205mm
