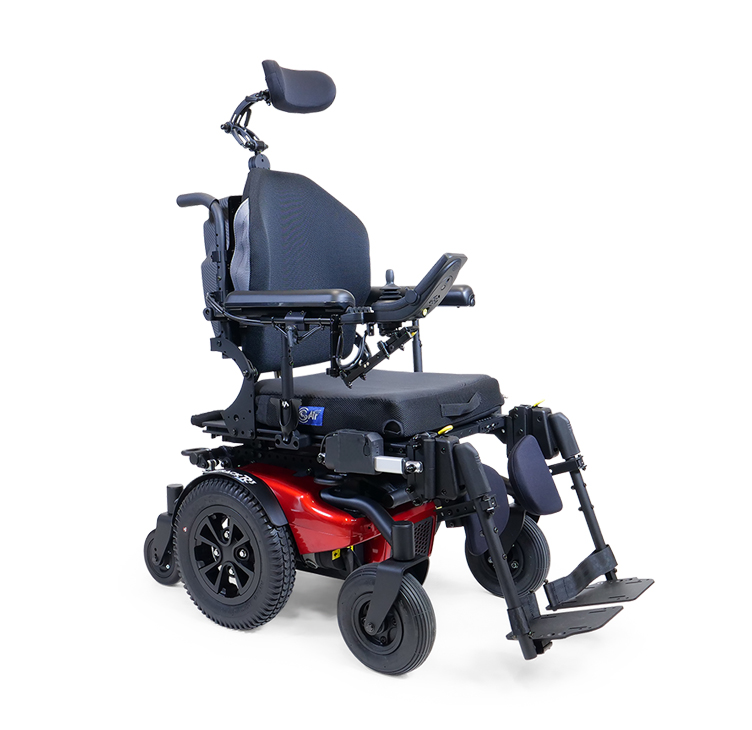

Amylior Alltrack R3 Hybrid Power Wheelchair

The Alltrack R3 Hybrid Power Wheelchair & R3-HD are the one and only true Hybrid Power Wheelchair, melding the best attributes of rear-wheel drive and mid-wheel drive in one capable package. The R3 Hybrid Power Wheelchair is ideal for users that demand the outdoor performance, speed and comfort of a traditional rear-wheel drive, but need the manoeuvrability provided by mid-wheel drive. By combining unique geometry with patented dual-action suspension, the Amylior Alltrack R3 Hybrid Power Wheelchair offers a compact, manoeuvrable base without sacrificing performance!

Colours Available
  • Transportation Safety Guidance Document
  • Download
  • PDF [5 mb]

Product Highlights

136kg

User Weight Capacity

381mm to 660mm

Seating Width Sizes

910mm

Overall Length

  • Comfort of a rear wheel drive
  • Manoeuvrability of a mid wheel drive
  • Patented Dual-Action Suspension: Fully independent 6-wheel interactive suspension with vertical shock absorption
  • Stability, speed, comfort, and outdoor performance of rear-wheel drive
  • Compact footprint and turning radius of 550mm provides manoeuvrability similar to a mid-wheel drive
  • Available with centre mount articulating foot platform or independent elevating leg rests
  • Multiple frame, drive wheel and caster options
  • Available in standard (136kg weight capacity) and HD (181kg weight capacity) models
  • Optional community tyres

Ground clearance: 75mm to 90mm
Base length:
910mm
Base width:
595mm to 645mm

Base turning radius: 550mm
Overall length: 910mm
Overall width: 595mm to 645mm
Seat width: 380mm to 660mm
Battery type: Two 12V, deep cycle Gell cell Group 22NF (50 Ah) or Group 24 (70 Ah)
Seat to floor height range (With power tilt or seat elevate): 400mm to 485mm
Seat to floor height range (With combo power tilt and seat elevate):
450mm to 470mm
Drive wheel diameter:
320mm to 355mm
Caster wheel diameter:
205mm to 230mm
