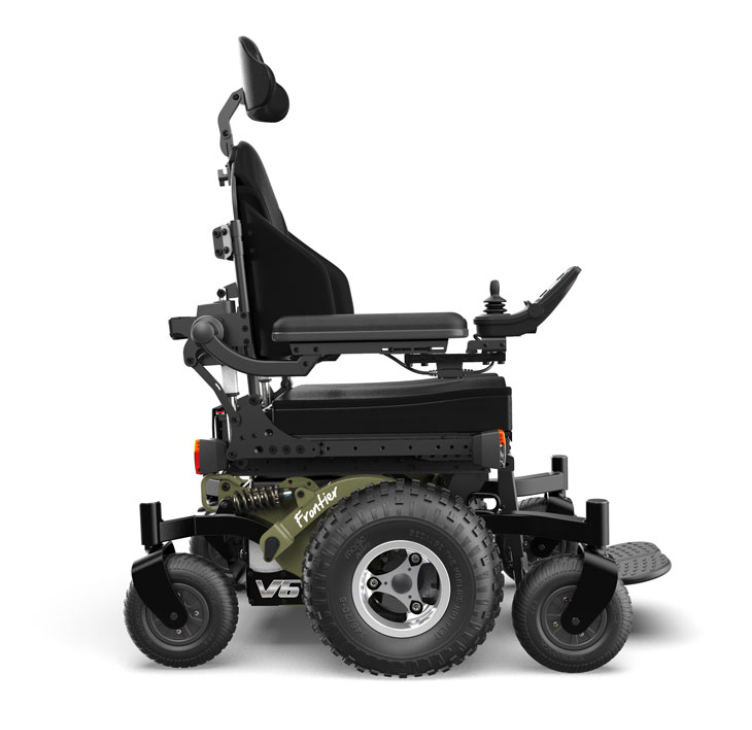

Magic Mobility Frontier V6 – All Terrain MWD Power Wheelchair

The Magic Mobility Frontier V6 All-Terrain mid-wheel drive electric wheelchair provides tremendous off road and kerb climbing capability. The low pressure tyres provide a smoother ride and give the wheelchair increased climbing ability. This electric wheelchair will impress those who prefer the track to the tarmac. This chair can also be converted to a narrower hybrid model with a simple tyre and wheel change.

Colours Available
  • Product Brochure
  • Download
  • PDF [718 kb]

Product Highlights

182kg

User Weight Capacity

30.5 - 61cm
(12" - 24")

Seating Width Sizes

58cm

Turning Radius

  • Greatest off-road capability in the Frontier V6 range
  • Best Frontier V6 model for kerb climbing
  • Exceptionally smooth ride due to the low pressure tyres
  • Optional large batteries give great battery life and allow you to travel a great distance

*Length of base: 1050mm (*legrest choice and seating size may increase chair length/width)
*Width of base: 710mm
Floor to top of seat pan height: 435mm
Turning circle (radius) of base: 580mm
Weight limit: 182kg (400lbs), 155kg (340lbs) with lift and/or tilt
Top speed: 10kph (6.2mph)
Motors: 68Nm Torque, 800W, Gear In Line
Motor IP rating 54 (splash resistant but not waterproof): The wheelchair has electric motors and must NEVER be driven through water, into rivers, creeks and the sea
Wheels: Off-road 14″ (145/70-6), black (note silver rims not available in the USA)
Castors: 220mm  (2.80/2.50-4), black or grey (solid or pneumatic)
Batteries: Gel
Controller: Penny & Giles controller with LCD display (R-Net) or LED option
Legrest options: Centre post, manual elevating, power/manual elevating swingaway, centre mount power elevating
Seating and backrests: Adjustable seat pan (12” deep to 24” wide) to fit MPS / Rehab or aftermarket seating options
Tie down points: Crash test compliant
