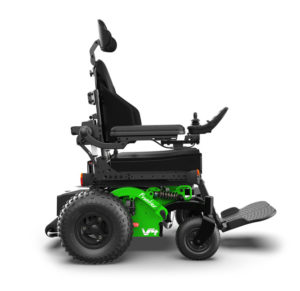

Magic Mobility Frontier V4 – Off-Road RWD Power Wheelchair

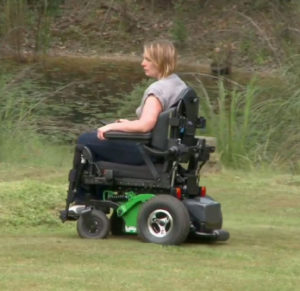

With superior stability, smooth suspension and an unbeatable climbing ability, The Frontier V4 Off-Road RWD electric wheelchair has changed the face of the rear wheel drive market. Further, the Magic Mobility Frontier V4 Off-Road can easily switch to smaller tyres for those days in the crowded city where all-terrain capabilities are not required.

Colours Available
  • Product Brochure
  • Download
  • PDF [746 kb]

Product Highlights

182kg

User Weight Capacity

30.5 - 61cm
(12" - 24")

Seating Width Sizes

52cm

Turning Radius

  • Compact with great off-road capability
  • Powerful kerb climbing
  • Excellent stability
  • Exceptionally smooth ride
  • Great battery life/distance

*Length of base: 930mm (*legrest choice and seating size may increase chair length/width)
*Width of base: 710mm (670mm with Hybrid wheels)
Floor to top of seat pan height: 435mm
Turning circle (radius) of base: 520mm
Weight limit: 182kg (400lbs), 155kg (340lbs) with lift and/or tilt
Top speed: 10kph (6.2mph)
Motors: 68Nm Torque, 800W, Gear in Line
Motor IP rating 54 (splash resistant but not waterproof): Please note that this wheelchair has electric motors and must not be driven through water, into rivers, creeks and the sea
Wheels: Off-road 14″ black (note silver rims not available in the USA), Hybrid 14″x3″ black or grey (solid or pneumatic)
Castors: 220mm (2.80/2.50-4), black or grey (solid or pneumatic)
Batteries: Gel
Controller: Penny & Giles controller with LCD display (R-net) or LED option
Legrest options: Centre post, manual elevating, power/manual elevating swingaway, centre mount power elevating
Backrest and seat: Adjustable seat pan (12” deep to 24” wide) to fit MPS / Rehab or aftermarket seating options
Tie down points: Crash test compliant
