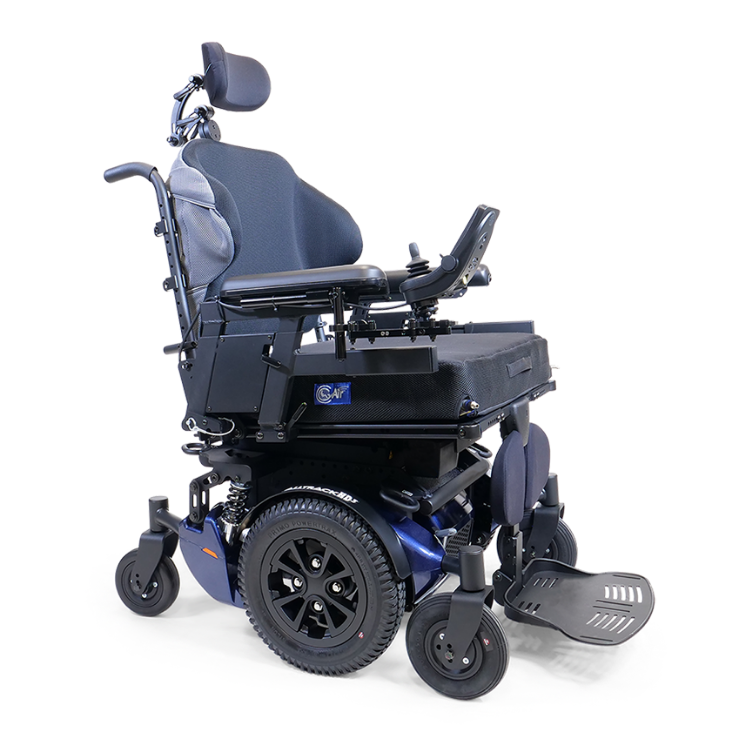

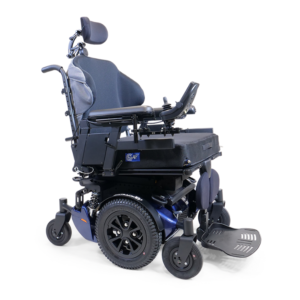

Amylior Alltrack HD3 Power Wheelchair

The Amylior Alltrack HD3 Mid Wheel Drive power wheelchair is a versatile, fully capable, very heavy-duty (VHD) power wheelchair with a standard weight capacity of up to 250kg (550lb). Purpose built to address the unique needs of larger users, the HD3 offers uncompromising performance and capability. Superior indoor maneuverability is possible due to the compact, mid-wheel drive footprint and excellent comfort and stability thanks to patented dual-action suspension.

Colours Available

Product Highlights

250kg

User Weight Capacity

48.5cm - 71cm (19" - 28")

Seating Width Sizes

52cm (20.5")

Turning Radius

  • Patented Dual-Action Suspension: Fully independent 6-wheel interactive suspension with vertical shock absorption tuned for heavier users
  • Up to 250kg weight capacity with full power positioning ranges; 45° of VHD tilt, 160° of VHD power recline and center mount elevating & articulating foot platform
  • Extremely compact turning radius of 20.5” (520 mm)
  • High-performance, 9km/hr, 4-pole German motors
  • Seat to floor height as low as 17” with VHD power tilt and recline

Ground clearance: 90mm
Base width: 695mm
Base length: 890mm
Base turning radius: 520mm
Weight capacity: 250kg
4 Pole motor options : 9km/hr
Battery type: Two 12V, deep cycle Gell cell Group 24 (70 Ah)
Seat width: 485mm – 710mm (custom seat sizes are available)
Seat to floor height range (with power tilt): 430mm – 485mm
Drive wheel diameter: 355mm
Caster wheel diameter: 205mm
