CoMoveIT Smart Headset

Revolutionary wheelchair controls.

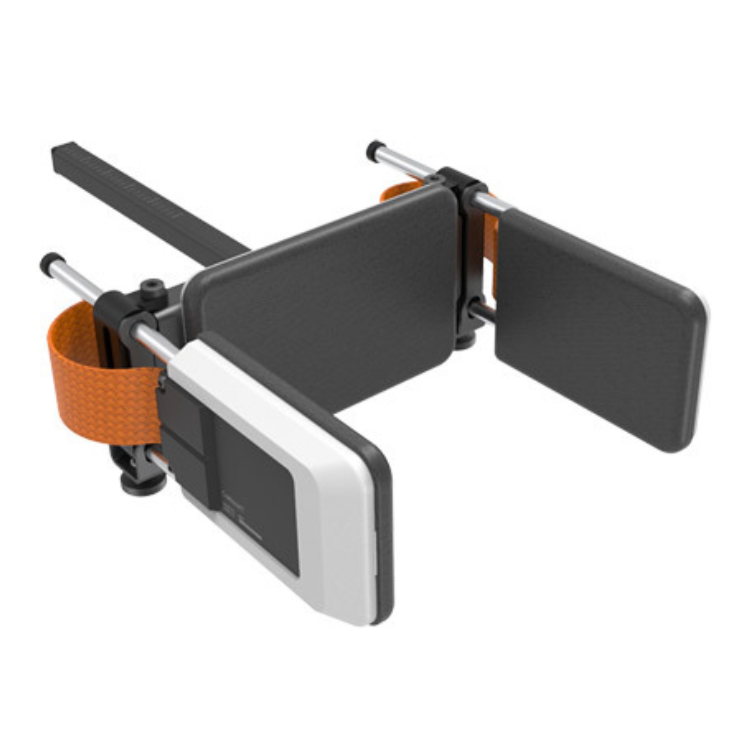

This headset with hi-tech touch sensors enables the user to steer and move forward. It has optional foot pads with hi-tech touch sensors to move forward or to steer.

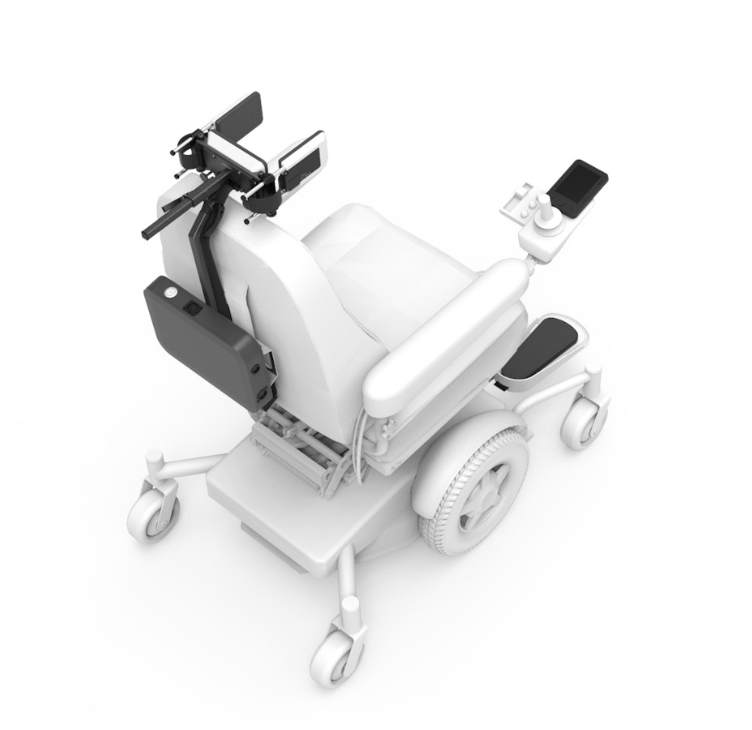

CoMoveIT Smart is equipped with hi-tech pressure sensors, at a maximum of five locations (sensor pads) on the complete head-foot steering system. A maximum of four individual sensor pads can be used simultaneously when they are connected to the Electronic Control Unit (ECU), which is the heart of this steering device’s control system. The sensor itself is a complex array of multiple sensor elements.

The ECU captures and measures the sensor signals at a high rate. The captured signal represents the way the user is working with the pad at that very moment – whether pressure is very hard or soft, over the entire surface or just a part of it, continuous or interrupted.

  • Head only or head-foot touch pads
  • Continuous and automatic adaptation to the user
  • Intuitive and comfortable driving
  • Easy learning, therapeutic effect
  • Auto-calibration at every start
  • Interface access to peripherals, computer and gaming
  • Hassle-free fitting and maintenance
  • Free of programming

Interface Connector: Female 9-pin D-sub for connection with interface module
Interfaces: PG Drives Technology R-net OMNI 2, PG Drives Technology R-net Input/Output Module, Q-Logic 3 EX Enhanced Display, Curtis Instruments AG Display Module
Operating Voltage: 12V DC
Maximum Current Usage: 66 mA
Omni SID Control Type: 3-axis Switched Input or 4-axis Switched Input
Force Sensor Array Connector: IDC Connector, 26 Contacts
